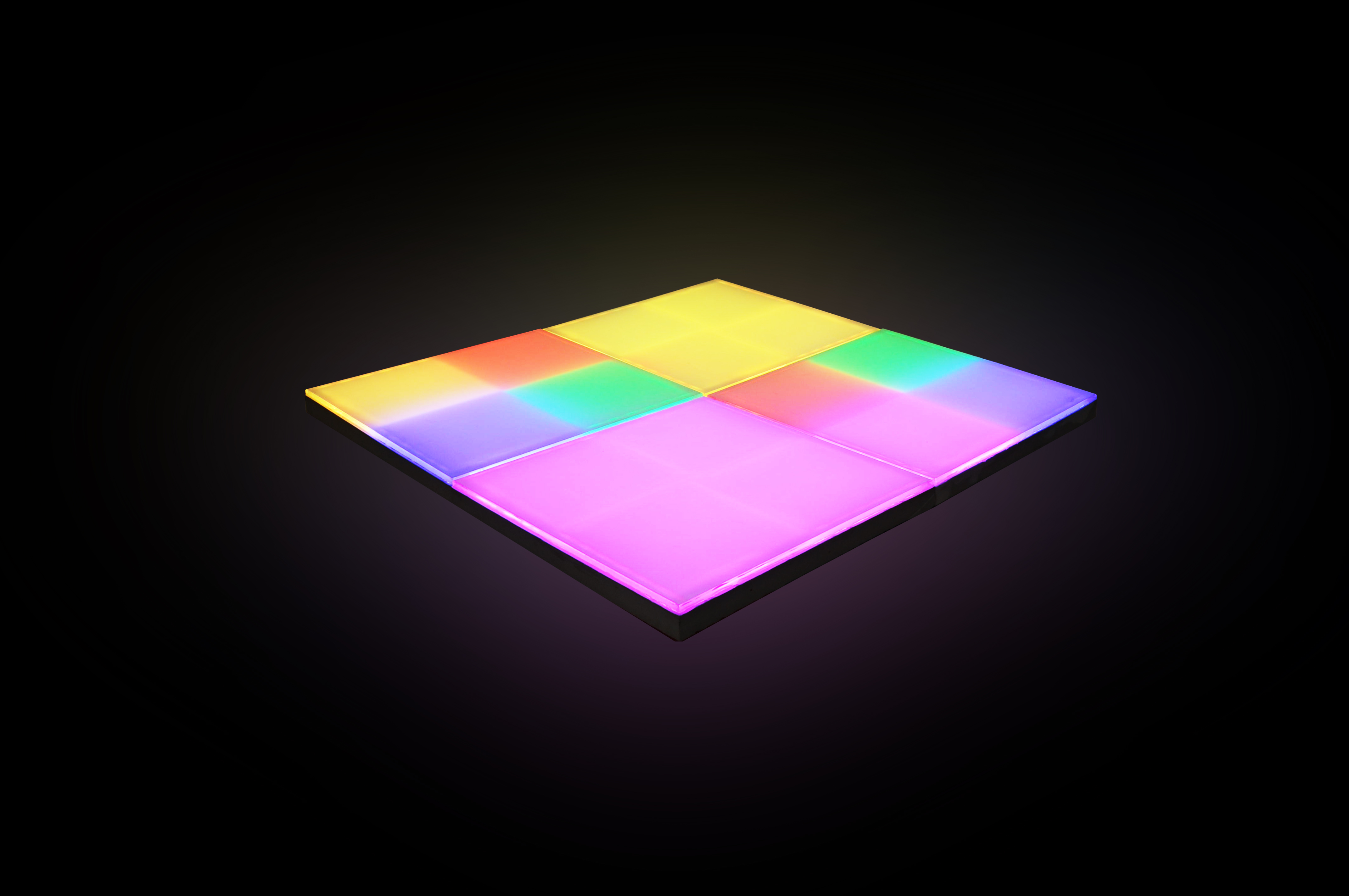

WALL LDR LUMENTILE

WALL LDR LIGHTING LUMENTILE




Application:

Wall LDR LUMENTILE is suitable for its integration in interior areas like the lobby of a hotel, hotel rooms, offices, retail stores, and any other space where a customizable lighting system is desired.

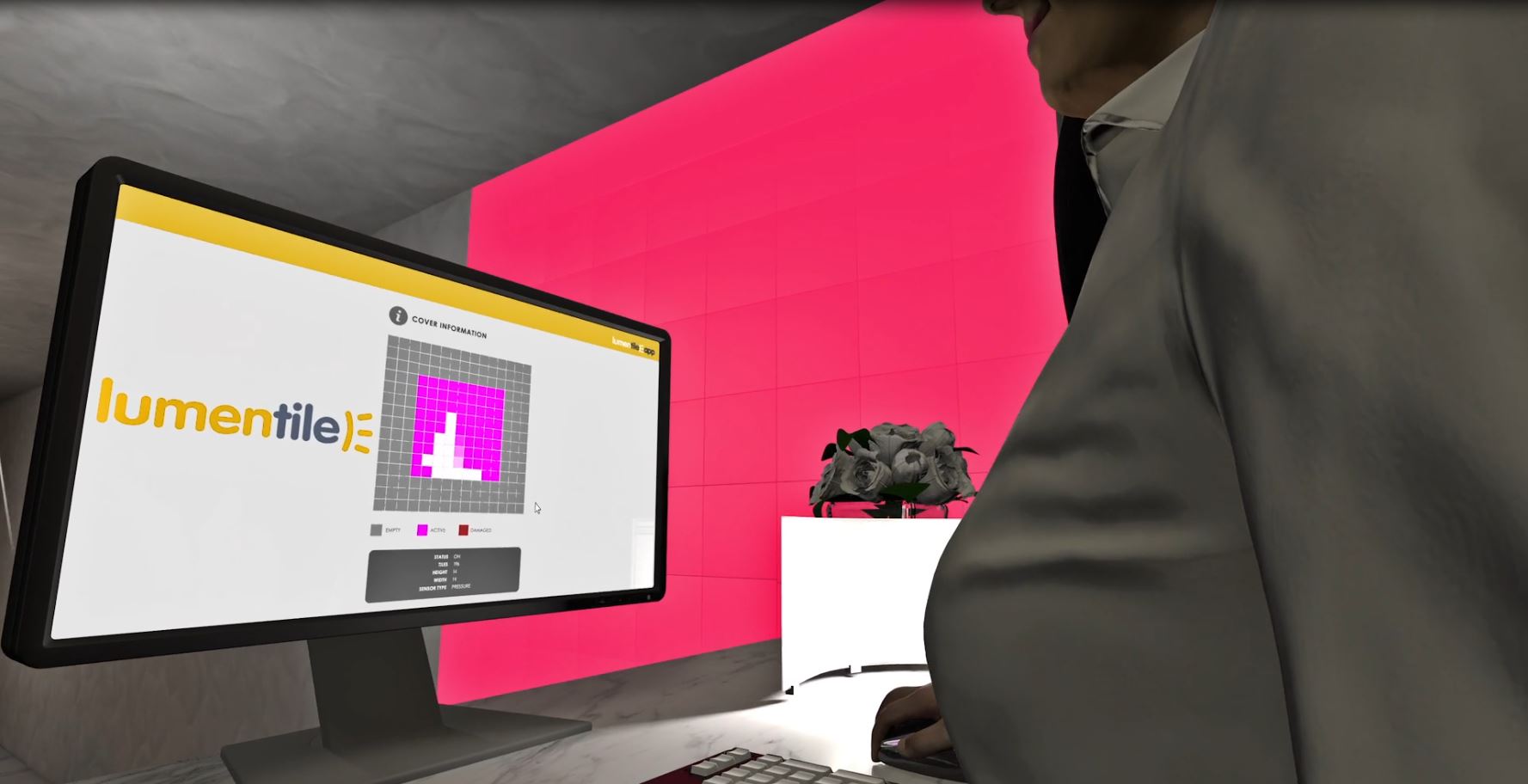

This solution allows the user to design creative lighting scenarios. It could be done with an app, or by interacting directly with the tiles as it has gesture sensors that turn on and off the tiles, vary their intensity or activate a global reaction of a group of tiles.

Customized software could be developed to run interaction applications such as games where people are able to control the movements of the lighted tiles to achieve a goal.

Endless possibilities for any idea that fits the LUMENTILE behaviors!

Technical Characteristics:
  • Thickness: 18 mm
  • IP: IP54
  • Dimensions: 300×300 mm
  • Sensors: Gesture sensors
  • Top layer: Frosted glass
  • Bottom layer: Ceramic
  • Type of LEDs: White high power and RGB LEDs
  • Type of installation: Vertical
  • Maximum power consumption: 36 W
  • Luminous efficiency: > 15 lm/W
